28T960 Ch= 28F20

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1949 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
222417

- alternative name: Chicago Radio Lab

Schematics

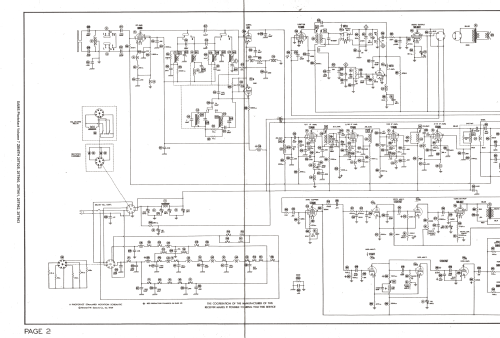

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285253) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285254) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285255) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285256) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285257) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285258) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285259) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285260) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285261) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285262) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285263) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619023) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619024) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619025) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619026) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619027) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619028) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619029) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619030) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619031) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619032) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619033) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619034) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619035) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619036) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619037) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619038) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619039) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619040) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1619041) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (3)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1587594) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (2)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1587595) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (2)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1587602) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (2)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1587596) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (2)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1587598) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (2)

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1285252) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (2)

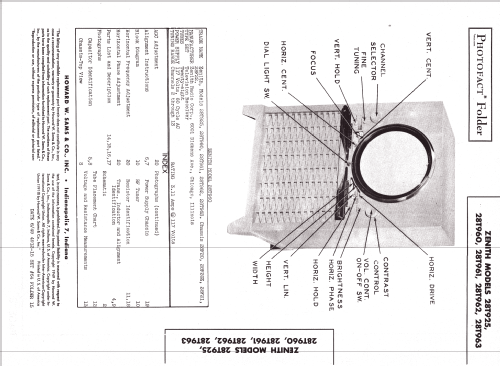

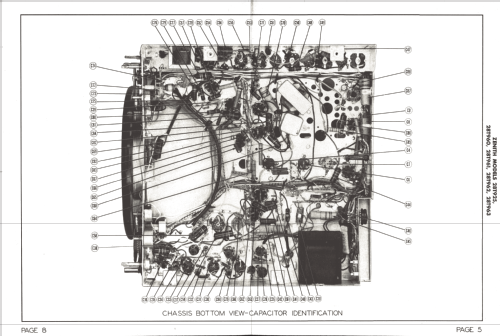

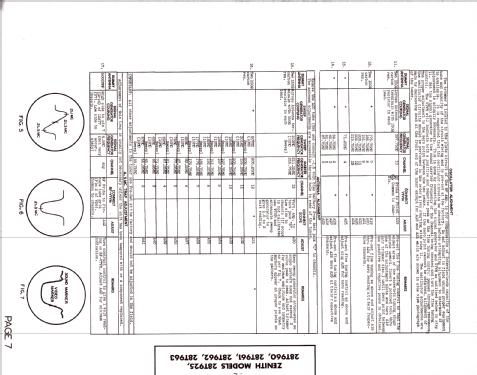

SAMS Photofact Folder 4912-15

28T960 Ch= 28F20; Zenith Radio Corp.; (ID = 1587605) Television — Zenith Radio Corp.; 28T960 Ch= 28F20 (2)

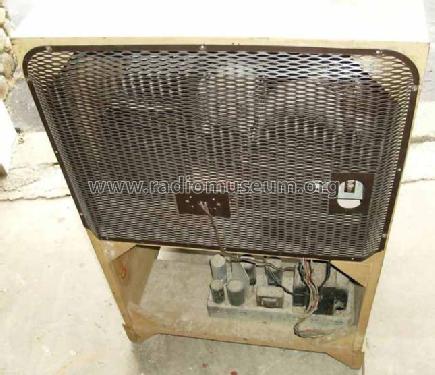

Zenith model 28T960E copy from Zenith AD

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
28

Valves / Tubes
6AG5 6AG5 6J6 6AU6 6AU6 6AH6 12AT7 12AT7 6SL7GT 6AC7 6AU6 6AU6 6AU6 6T8 6V6GT 6AU6 6SH7 6SN7GT 6V6GT 6AL5 6AC7 6K6GT 6BG6G 5V4G 1B3GT 5U4G 5U4G 12LP4 or 12KP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 117 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Power out
3.5 W (6.5 W max.)

Material
Wooden case

from Radiomuseum.org
Model: 28T960 Ch= 28F20 - Zenith Radio Corp.; Chicago,

Shape
Console, Lowboy (legs < 50 %).

Notes
The Zenith 28T960 is a 12" round CRT porthole styled b/w TV with US FCC standard VHF turret tuner channels 2 thru 13. Equipped with split chassis 28F20 and picture tube 12KP4 or 12LP4.

Chassis no. from Rider's; SAMS does not specify chassis-to-model reference, but only the tube line-up per chassis. The data on this page shows this information.

Mentioned in
Photofact Folder, Howard W. SAMS (Set 64, Folder 15, Date 06/49)

Literature/Schematics (1)
Rider's TV2, 2-1

Literature/Schematics (2)
Beitman TV-3, 1949

Literature/Schematics (3)
- - Manufacturers Literature (Zenith Service Manual TV3 - 1948 & 49 - 27, 28 & 29 tube Television Receivers Dated Aug 1949)

Author
Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
