4K635 Ch=4B03

4K635 Ch=4B03; Zenith Radio Corp.; (ID = 345369) Radio

4K635 Ch=4B03; Zenith Radio Corp.; (ID = 345370) Radio
4K635 Ch=4B03; Zenith Radio Corp.; (ID = 1714034) Radio 4K635 Ch=4B03; Zenith Radio Corp.; (ID = 102177) Radio
4K635 Ch=4B03; Zenith Radio Corp.; (ID = 102179) Radio 4K635 Ch=4B03; Zenith Radio Corp.; (ID = 102183) Radio
4K635 Ch=4B03; Zenith Radio Corp.; (ID = 1714035) Radio 4K635 Ch=4B03; Zenith Radio Corp.; (ID = 1714036) Radio
4K635 Ch=4B03; Zenith Radio Corp.; (ID = 1714037) Radio 4K635 Ch=4B03; Zenith Radio Corp.; (ID = 1714038) Radio
Use red slider bar for more.
4K635 Ch=4B03; Zenith Radio Corp.; (ID = 1714034) Radio
Zenith Radio Corp.;: 4K635 Ch=4B03 [Radio] ID = 1714034 933x720

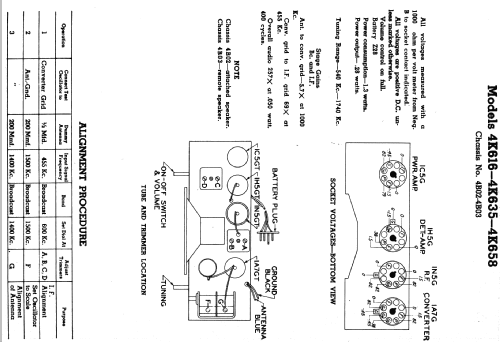

Select picture or schematic to display from thumbnails on the right and click for download.
For model 4K635 Ch=4B03, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7G 1N5GT 1H5G 1C5G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: 4K635 Ch=4B03 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17.3 x 10.4 x 9.7 inch / 439 x 264 x 246 mm
Notes Farm radio
Price in first year of sale 29.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
