4T26 Ch= 5403 late
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67515
-
- alternative name: Chicago Radio Lab
View of front and left sides of Zenith 4T26.
Picture of cabinet bottom with Zenith label.

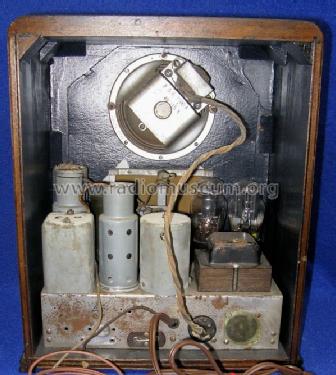

Rear view of Zenith 4T26.
Zenith 4-T-26, Chassis 5403(late)
Zenith 4-T-26 Dialface
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4T26 Ch= 5403 [late] - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 12 x 14 x 7 inch / 305 x 356 x 178 mm
- Notes
-
Improved SW
Model 4-T-26 chassis 5403 late
Similar to model 4-T-26 chassis 5401 and model 4-T-26 chassis5403 early, model 4-P-26 chassis 5401 and model 4-P-26E Ch.5401E
Differences in the chassis versions are in the dial area, the color of the dial plate, and the wave bands.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Zenith Radio The Glory Years 1936-1945
- Other Models
-
Here you find 4494 models, 4099 with images and 3605 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Collections
The model 4T26 is part of the collections of the following members.
Forum contributions about this model: Zenith Radio Corp.;: 4T26 Ch= 5403
Threads: 1 | Posts: 1
The radio had a failed (non-original) power transformer. I could not find an original transformer but I did find one that would work. It was made by Allied Radio Corp. The identifier for it reads: PT. #02-x34 where the "x" could be a 9 or an 8 or a 5.
The Table of Voltages has at least one error. Pin 5 on tube 6F6 should be about -16vdc.
This radio does not use Automatic Volume Control (AVC).
