5D042T 5-D-042-T Ch=5C64-T
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67554
-
- alternative name: Chicago Radio Lab

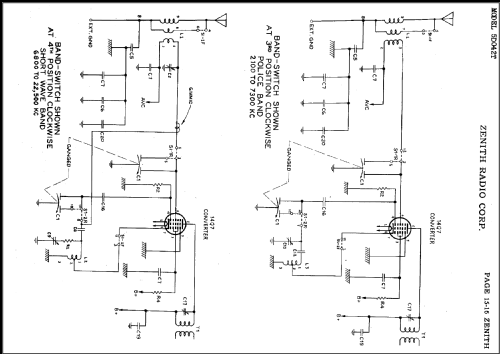

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 115/230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5D042T 5-D-042-T Ch=5C64-T - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Notes
- bands: BC, Police, 2xSW;
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
