5G441 Ch= 5539
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67583
-
- alternative name: Chicago Radio Lab
Beitman

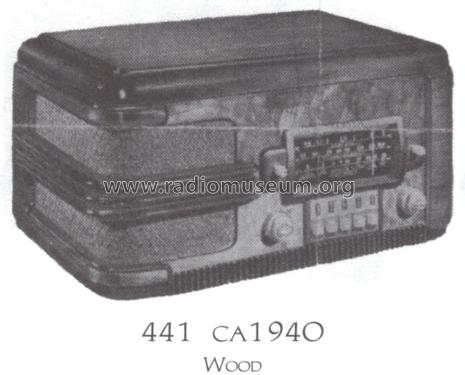

5-G-441 (Ch5539) 1940 Hans Amberger
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Line / Batteries (any type)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5G441 Ch= 5539 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 20.8 x 10.6 x 12.6 inch / 528 x 269 x 320 mm
- Notes
- Farm radio;
- Price in first year of sale
- 50.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Machine Age to Jet Age II (page 322.)
