117Z6G

Information - Help
ID = 3583

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  High-vacuum Rectifier   Power-supply
Identical to 117Z6G
Similar Tubes
Other shape (e.g. bulb type):
  117Z6GT
Different connections:
  117Z6GC
First Source (s)
22.May.1939 : Electron Tube Registration List

Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Ue)
Filament Vf 117 Volts / If 0.075 Ampere / Half indirect / Specified voltage AC/DC

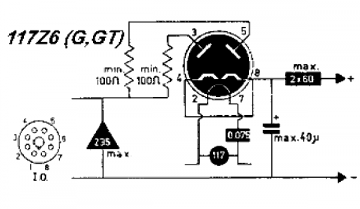

Description Whith two independed diodes to be used as voltage doubler or higher current.
NOT intended as full wave rectifier.
The cathode of ONE diode is connected to heater pin 7 - (half half indirect).
Text in other languages (may differ)
Information source Taschenbuch zum Röhren-Codex 1948/49

117Z6G: Internet
Daniel Consales

s_271_g.gif 117Z6G: W.Sprick: Austausch-Röhren-Lexikon 1947
Günther Stabe † 19.8.20

More ...

Just Qvigstad
117Z6G: Brimar Valve and Teletube Manual 1950 (No.3)
Adrian Riesen

Usage in Models 1= 1939? ; 6= 1939 ; 29= 1940 ; 2= 1941?? ; 27= 1941 ; 1= 1942? ; 4= 1942 ; 1= 1945? ; 4= 1946 ; 4= 1947?? ; 1= 1947

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):80

Collection of





Forum contributions about this tube
117Z6G
Threads: 1 | Posts: 2
Hits: 988     Replies: 1
Heater center tap of 117Z6G
Torbjörn Forsman
21.Apr.26
  1

According to the September-October 1940 issue of Sylvania News, see page 18 here , the center tap of the heater was removed from those tubes of later production, as UL considered it a safety risk. For replacement purposes in the seldom cases where the center tap was needed, the variant 117Z6GC was introduced.

The socket diagrams at the tube page show both versions with and without center tap, without comments so far.

Michael Watterson
21.Apr.26
  2

I downloaded and read the article.

I'm curious.

1. Why would parallel operation at 58.5V ever be wanted?

2. Why did "Fire Underwriters" (UL?) rule the centre tap was not permissible?

"The cathode of ONE diode is connected to heater pin 7 - (half half indirect)"

How does that work on a direct AC mains set? It's not shown in the base diagram.

I've only encountered the 117Z3


117Z6G
End of forum contributions about this tube
