666 Ch=5616; Zenith Radio Corp.; (ID = 2374670) Car Radio

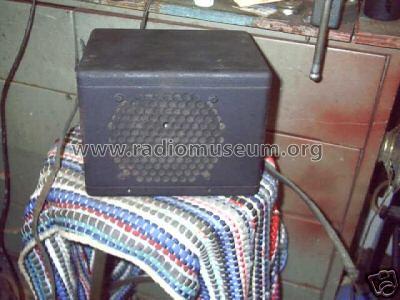

Zenith Radio Corp.;: 666 Ch=5616 [Car Radio] ID = 2374670 411x560
Select picture or schematic to display from thumbnails on the right and click for download.
For model 666 Ch=5616, Zenith Radio Corp.; Chicago, IL:
Copy from Worthpoint.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1935 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6D6 6C6 6D6 75 42 6Z4 or 84
Main principle Superhet with RF-stage; ZF/IF 252 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 666 Ch=5616 - Zenith Radio Corp.; Chicago,
Material Metal case
Shape Chassis only or for «building in»
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Zenith Radio The Early Years 1919-1935
