6D-311 Wavemagnet Ch= 5646 Brown

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 329613) Radio

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 329614) Radio

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 329615) Radio

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 329616) Radio

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 329617) Radio

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 329618) Radio

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 329619) Radio

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 329620) Radio
6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 1204532) Radio 6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 50019) Radio
6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 66128) Radio 6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 66130) Radio
6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 66132) Radio 6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 66133) Radio
6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 1204524) Radio 6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 1204525) Radio
6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 1204526) Radio 6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 1204527) Radio
Use red slider bar for more.

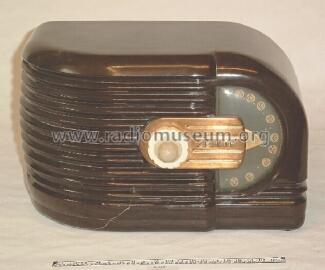

6D-311 Wavemagnet Ch= 5646; Zenith Radio Corp.; (ID = 1204532) Radio
Zenith Radio Corp.;: 6D-311 Wavemagnet Ch= 5646 [Radio] ID = 1204532 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6D-311 Wavemagnet Ch= 5646 Brown, Zenith Radio Corp.; Chicago, IL:
Ebay User the-radio-vintage Item 251026188675

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 25L6 25Z6
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 6D-311 Wavemagnet Ch= 5646 [Brown] - Zenith Radio Corp.; Chicago,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 10.8 x 6.8 x 6.3 inch / 274 x 173 x 160 mm
Notes

Budlong design. With bakelite wavemagnet back attachment. Also available in Ebony or Ivory finish.

Price in first year of sale 15.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Zenith Radio The Glory Years 1936-1945
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 170.)
Literature/Schematics (3) -- Original prospect or advert (The Zenith Folder for 1939.)
Literature/Schematics (4) Radio Retailing (Radio & Television R.) (ad January 1939 page 10)
