6G601M Universal Portable Radio Ch= 6B03

6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 249011) Radio
6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 2451821) Radio 6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 2451822) Radio
6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 95810) Radio 6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 95811) Radio
6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 95812) Radio 6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 267400) Radio
6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 517666) Radio 6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 624685) Radio
6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 624686) Radio 6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 624687) Radio
Use red slider bar for more.
6G601M Universal Portable Radio Ch= 6B03; Zenith Radio Corp.; (ID = 2451821) Radio

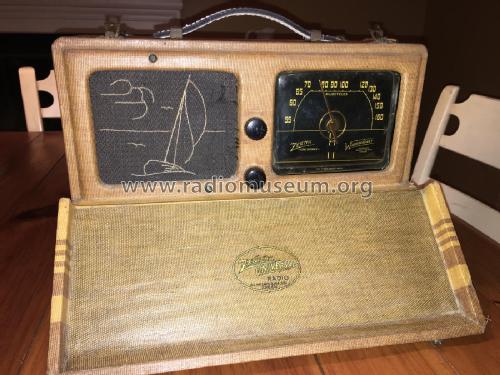

Zenith Radio Corp.;: 6G601M Universal Portable Radio Ch= 6B03 [Radio] ID = 2451821 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6G601M Universal Portable Radio Ch= 6B03, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1LN5 1LA6 1LN5 1LH4 3Q5G 117Z6G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / Either AC: 117V or DC: 117V or Batteries: 9 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
Power out 0.36 W (unknown quality)
from Radiomuseum.org Model: 6G601M Universal Portable Radio Ch= 6B03 - Zenith Radio Corp.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 15 x 9.8 x 7 inch / 381 x 249 x 178 mm
Notes

The Zenith 6G601M is an AC/DC/Battery operated portable 6 tube BC band receiver.  The BC band frequency tuning range is 540 to 1620kHz. Cabinet is wood covered with brown cotton fabric, Budlong design.

Power consumption 20 W

The following models use the same chassis and schematic but have different cabinets:

Model Wooden Cabinet Covering
6G601D Blue and Gray Airplane Fabric
6G601L Geinuine Top Grade Cowhide
6G601M Brown Airplane Fabric
6G601MH Brown and Ivory Airplane Fabric
6G601ML Simulated Brown Alligator
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 34.95 USD
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Mentioned in Zenith Service Manual Volume 2 (H-10) pages 188, 189
Literature/Schematics (1) Rider's Perpetual, Volume 13 = 1942 and before (Zenith section, page 13-17)


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4155 models, 3607 with images and 3261 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Zenith Radio Corp.;: 6G601M Universal Portable Radio Ch= 6B03
Threads: 1 | Posts: 1
Hits: 2008     Replies: 0
zenith: 6G601M;
Ralf Sürtenich
23.Mar.04
  1 Die verschiedenen 6G601 Varianten unterscheiden sich nur im Bezugsstoff:

M = brown airplane fabric; 80% der Geräte
D = blue gray airplane fabric; 9% der Geräte
ML = brown alligator; 5% der Geräte
MH = brown and ivory airplane fabric; 4% der Geräte
L = genuine leather; 2 % der Geräte

Gesamtstückzahl 225.350 Geräte, nach Bryant/Cones.
