7500 Ch= 11L8T25

7500 Ch= 11L8T25; Zenith Radio Corp.; (ID = 155981) Radio

7500 Ch= 11L8T25; Zenith Radio Corp.; (ID = 155982) Radio

7500 Ch= 11L8T25; Zenith Radio Corp.; (ID = 155983) Radio
Use red slider bar for more.
7500 Ch= 11L8T25; Zenith Radio Corp.; (ID = 155981) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6JK8 6BA6 6EQ7 6BN6 6FG6 6AU6 6GQ7 6BA6 6BE6 6EA8 6BN8
Semiconductors (the count is only for transistors) 8:
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Loudspeaker
Power out
from Radiomuseum.org Model: 7500 Ch= 11L8T25 - Zenith Radio Corp.; Chicago,
Notes Chassis 11L8T25 used in Modells: ML2668, ML2670, ML2675, ML2685 and 7500. Chassis 11L8T25 is an AM/FM receiver with transistor preamp. To the model belongs also a poweramp. Listed tubes refer only to the receiver.

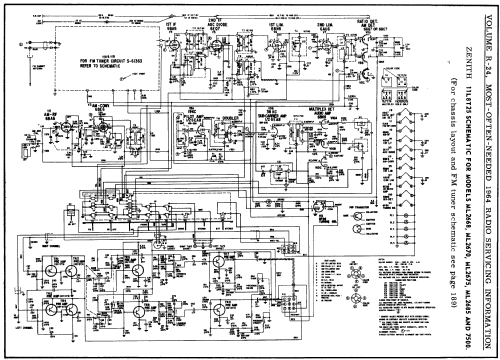

Circuit diagram reference Beitman Radio Diagrams Vol. 24, 1964

Model page created by Egon Penker. See "Data change" for further contributors.
