7-J-232 "Waltons" Ch=5711

7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 78093) Radio

7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 319712) Radio

7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 319713) Radio

7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 319714) Radio

7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 319715) Radio

7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 319716) Radio
7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 1493667) Radio 7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 100924) Radio
7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 100925) Radio 7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 100926) Radio
7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 100927) Radio 7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 100928) Radio
7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 100929) Radio 7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 100930) Radio
7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 621439) Radio 7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 621440) Radio
Use red slider bar for more.
7-J-232 'Waltons' Ch=5711; Zenith Radio Corp.; (ID = 1493667) Radio

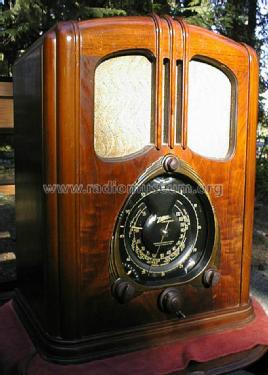

Zenith Radio Corp.;: 7-J-232 "Waltons" Ch=5711 [Radio] ID = 1493667 933x1224
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7-J-232 "Waltons" Ch=5711, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6S7G 6D8G 6S7G 6T7G 6L5G 1J6G 6ZY5G
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Line / Batteries (any type)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 7-J-232 "Waltons" Ch=5711 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 17 x 24 x 12.5 inch / 432 x 610 x 318 mm
Notes

Farm Radio. The popular set from the TV series "The Waltons".

The cabinet is similar for the following "Walton" models:
12-S-232
  9-S-232

  9-S-232AT
  8-A-232
  7-S-232
  7-S-232T
  7-J-232
  7-J-232T

They are looking all the same. That's why all of them are called "Waltons" although only one thereof was in the play.

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 80.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 170.)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 283.)
