7S633 Ch= 7B01

7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 1584745) Radio 7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 51180) Radio
7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 312239) Radio 7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 312240) Radio
7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 312242) Radio 7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 312243) Radio
7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 1502911) Radio 7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 1584748) Radio
7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 1584749) Radio 7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 1711243) Radio
Use red slider bar for more.
7S633 Ch= 7B01; Zenith Radio Corp.; (ID = 1584745) Radio
Zenith Radio Corp.;: 7S633 Ch= 7B01 [Radio] ID = 1584745 933x661
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7S633 Ch= 7B01, Zenith Radio Corp.; Chicago, IL:

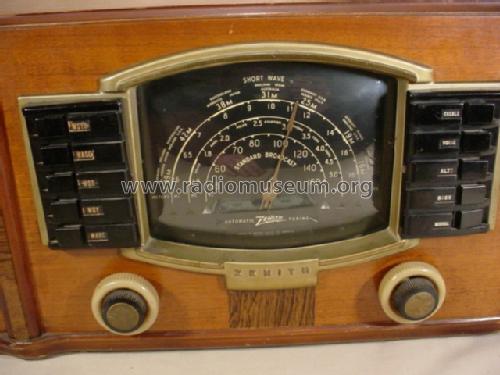

Restored, resprayed. Centre (black/brass) knobs not original. Grill cloth is original.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 7H7 7A7 7B6 6X5G 7B8 6P5GT 6AC5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 7S633 Ch= 7B01 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel with Push Buttons.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Machine Age to Jet Age II (page 325.)
