808 Ch= 5605/5607; Zenith Radio Corp.; (ID = 553912) Radio

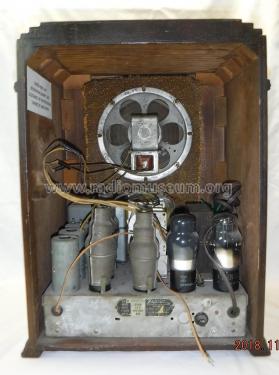

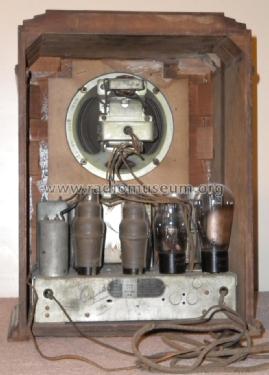

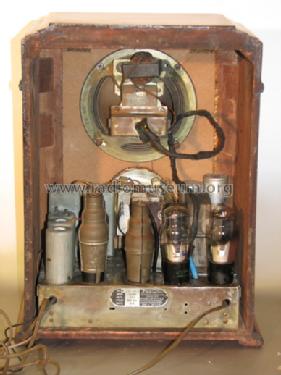

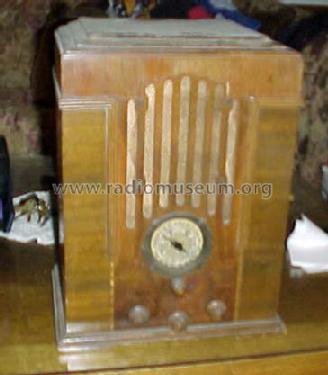

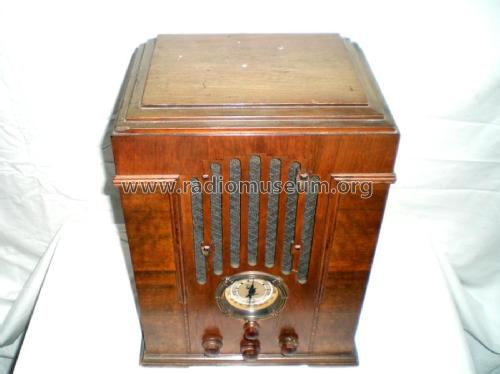

Zenith Radio Corp.;: 808 Ch= 5605/5607 [Radio] ID = 553912 439x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model 808 Ch= 5605/5607, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D6 6A7 6D6 75 42 80
Main principle Superhet with RF-stage; ZF/IF 252 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 808 Ch= 5605/5607 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 325 x 420 x 230 mm / 12.8 x 16.5 x 9.1 inch
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 174.)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 286.)
