815 Ch=5611 5612; Zenith Radio Corp.; (ID = 20822) Radio
815 Ch=5611 5612; Zenith Radio Corp.; (ID = 354472) Radio 815 Ch=5611 5612; Zenith Radio Corp.; (ID = 866655) Radio
815 Ch=5611 5612; Zenith Radio Corp.; (ID = 866656) Radio 815 Ch=5611 5612; Zenith Radio Corp.; (ID = 866657) Radio
Use red slider bar for more.
815 Ch=5611 5612; Zenith Radio Corp.; (ID = 354472) Radio

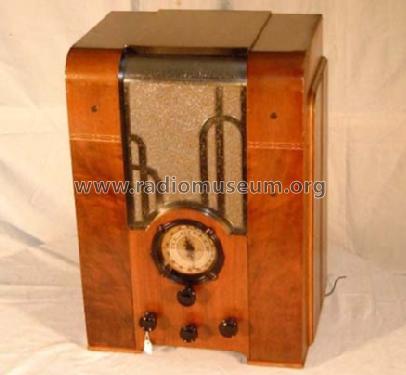

Zenith Radio Corp.;: 815 Ch=5611 5612 [Radio] ID = 354472 438x404
Select picture or schematic to display from thumbnails on the right and click for download.
For model 815 Ch=5611 5612, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D6 6A7 6D6 75 42 80
Main principle Superhet with RF-stage; ZF/IF 125 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 815 Ch=5611 5612 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Collectors' prices
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Zenith Radio The Early Years 1919-1935


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
