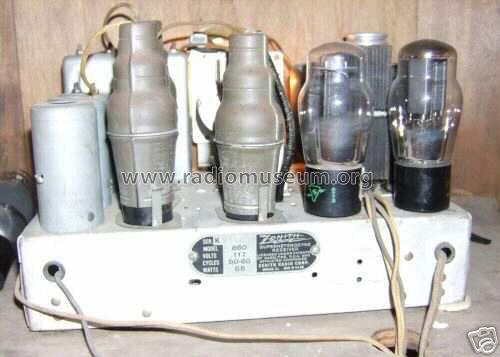

Zenith Radio Corp.;: 860 Ch= 5605/5607 [Radio] ID = 1768842 640x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model 860 Ch= 5605/5607, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D6 6A7 6D6 75 42 80
Main principle Superhet with RF-stage; ZF/IF 252 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 860 Ch= 5605/5607 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 12 x 39.2 x 9 inch / 305 x 996 x 229 mm
Notes 6-legged lowboy with stretcher base.
Price in first year of sale 70.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Pre-War Consoles
