- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 329528
-
- alternative name: Chicago Radio Lab

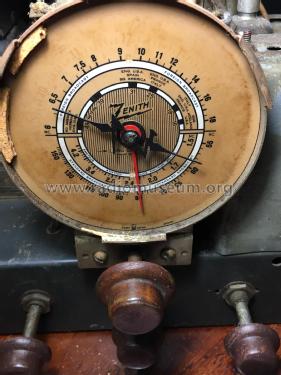

With courtesy by owner Shawn Johnston.

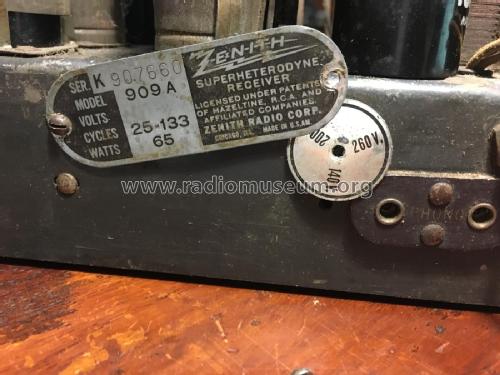

With courtesy by owner Shawn Johnston.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; Export model
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110/200/260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 909A - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
The radio is an export model.
The S-909 and 909 models are believed to have a similar cabinet.
- Author
- Model page created by Hans Amberger. See "Data change" for further contributors.
