934 Ch= 1002
Use red slider bar for more.

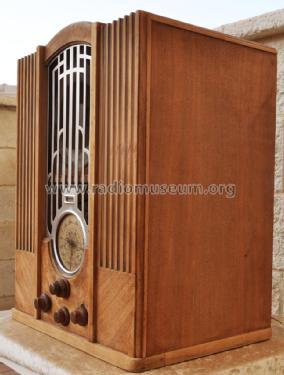

Zenith Radio Corp.;: 934 Ch= 1002 [Radio] ID = 1539308 933x1229
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Chicago Radio Lab | ||||
|---|---|---|---|---|---|
| Year: 1935 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 10: 6D6 6A7 6D6 6D6 76 75 42 42 42 5Z3 |
| Main principle | Superhet with RF-stage; ZF/IF 485 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 230 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: 934 Ch= 1002 - Zenith Radio Corp.; Chicago, |
| Material | Wooden case |
| Shape | Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges. |
| Notes | Export version of the Model 935 for use with 230 Volt 25 Hz power. |
| Circuit diagram reference | Rider's Perpetual, Volume 10 = 1939 and before |
| Mentioned in | Zenith Radio The Early Years 1919-1935 |
