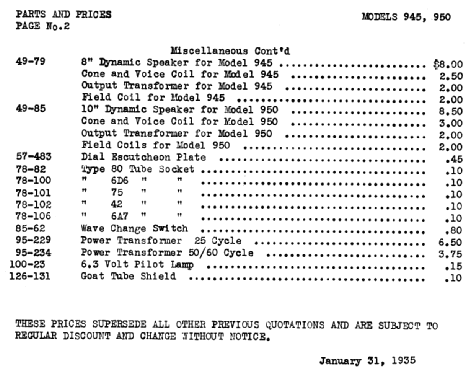

Select picture or schematic to display from thumbnails on the right and click for download.
For model 950 Ch= 5508/5509, Zenith Radio Corp.; Chicago, IL:
Copy gen. von John Goller Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 42 80
Main principle Superheterodyne (common); ZF/IF 252 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 950 Ch= 5508/5509 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes Ch5509 for 25cycle mains;
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
