980 Ch= 1201; Zenith Radio Corp.; (ID = 764634) Radio
Zenith Radio Corp.;: 980 Ch= 1201 [Radio] ID = 764634 488x674
Select picture or schematic to display from thumbnails on the right and click for download.
For model 980 Ch= 1201, Zenith Radio Corp.; Chicago, IL:

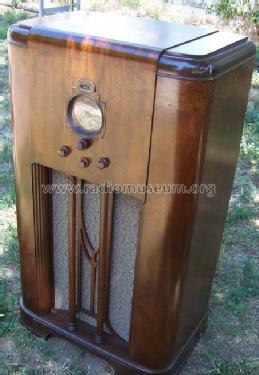

Zenith model 980 with courtesy by JohnnyJohnson.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner

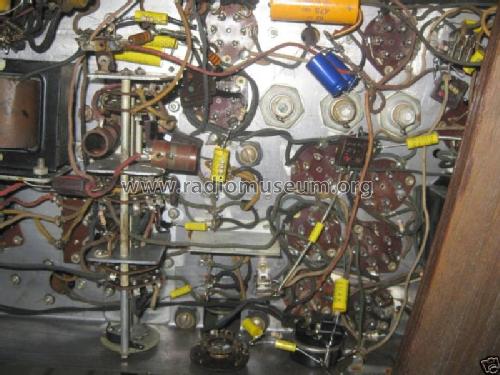

Valves / Tubes 12: 6D6 6A7 6D6 6D6 76 76 76 76 76 42 42 5Z3
Main principle Superhet with RF-stage; ZF/IF 485 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt

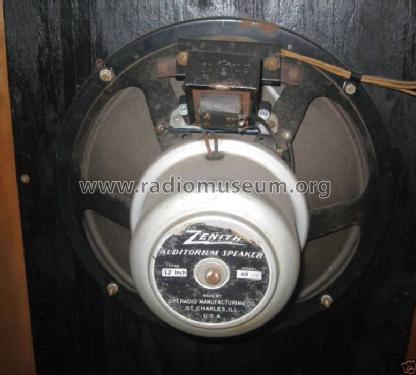

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 980 Ch= 1201 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes 5 bands: BC/Police +3xSW
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Pre-War Consoles
