9S54 Ch= 5903
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 19027
-
- alternative name: Chicago Radio Lab

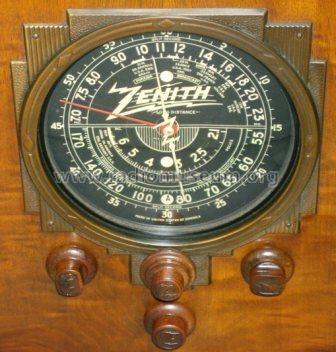

with courtesy by Mark Taylor

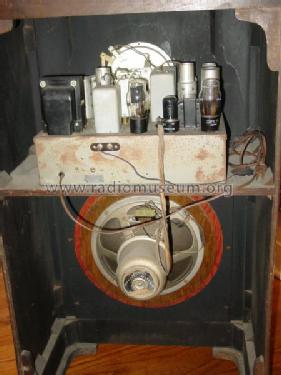

with courtesy by Mark Taylor back view

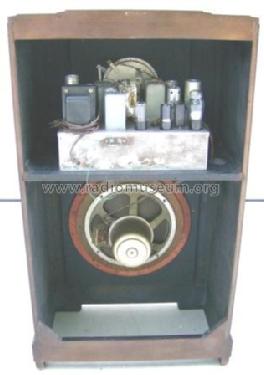

with courtesy by Mark Taylor side view
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9S54 Ch= 5903 - Zenith Radio Corp.; Chicago,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 590 x 1030 x 330 mm / 23.2 x 40.6 x 13 inch
- Notes
- .
- Price in first year of sale
- 100.00 $
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Pre-War Consoles
