Chinese Deluxe Zenith late, mains

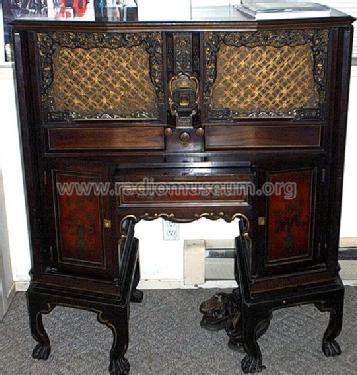

Chinese Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 2208185) Radio Chinese Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 2208179) Radio
Chinese Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 191644) Radio
Use red slider bar for more.
Chinese Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 2208185) Radio
Zenith Radio Corp.;: Chinese Deluxe Zenith late, mains [Radio] ID = 2208185 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Chinese Deluxe Zenith late, mains, Zenith Radio Corp.; Chicago, IL:
USA_Zenith_model Chinese de Luxe copy from Antiques Radio.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1927–1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: UY227 UY227 UY227 UY227 UY227 UY227 UY227 UX210 UX281 UX281
Main principle TRF without regeneration
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Chinese Deluxe Zenith late, mains - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes Two speakers! Two dials (primary tuning control knobs); tuned 100-550meters;
Price in first year of sale 1'700.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Zenith Radio The Early Years 1919-1935
