Colonial Deluxe Zenith late, mains

Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764699) Radio Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764694) Radio
Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764696) Radio Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764695) Radio
Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764697) Radio Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764698) Radio

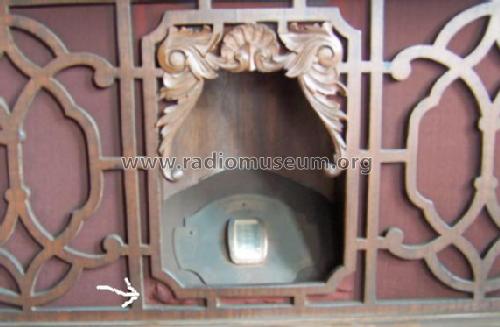

Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764700) Radio Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 268130) Radio
Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764701) Radio
Use red slider bar for more.
Colonial Deluxe Zenith late, mains; Zenith Radio Corp.; (ID = 764699) Radio
Zenith Radio Corp.;: Colonial Deluxe Zenith late, mains [Radio] ID = 764699 404x363
Select picture or schematic to display from thumbnails on the right and click for download.
For model Colonial Deluxe Zenith late, mains, Zenith Radio Corp.; Chicago, IL:
Zenith model Colonial de-Luxe with courtesy by Ebayseller hanoverantiques.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1927–1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: UY227 UY227 UY227 UY227 UY227 UY227 UY227 UX210 UX281 UX281
Main principle TRF without regeneration
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Colonial Deluxe Zenith late, mains - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Two speakers! Two dials (primary tuning control knobs); tuned 100-550meters;
Price in first year of sale 650.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Zenith Radio The Early Years 1919-1935
