H725 Ch= 7G01Z green

H725 Ch= 7G01Z; Zenith Radio Corp.; (ID = 2452657) Radio H725 Ch= 7G01Z; Zenith Radio Corp.; (ID = 2452658) Radio
Use red slider bar for more.
H725 Ch= 7G01Z; Zenith Radio Corp.; (ID = 2452657) Radio
Zenith Radio Corp.;: H725 Ch= 7G01Z [Radio] ID = 2452657 718x533

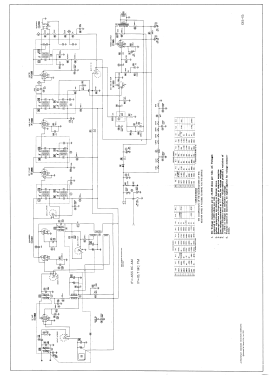

Select picture or schematic to display from thumbnails on the right and click for download.
For model H725 Ch= 7G01Z green, Zenith Radio Corp.; Chicago, IL:

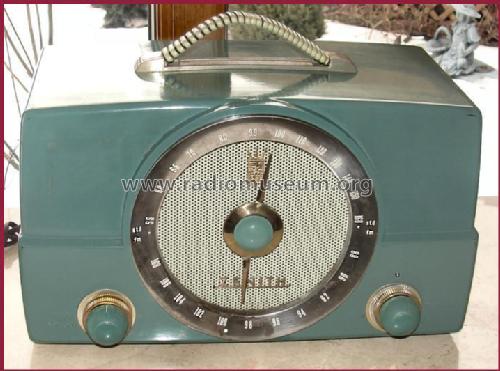

Picture from Hans Amberger.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6BJ6 or 12BA6 12AT7 12BA6 12BA6 12AU6 19T8 or 19C8 35C5
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
Power out
from Radiomuseum.org Model: H725 Ch= 7G01Z [green] - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15 x 9 x 8 inch / 381 x 229 x 203 mm
Notes

This model is identical to the Zenith H725 (walnut) except for the cabinet color .  Other colors (gray and white) are believed to exist, but have not been verified by actual labels.

Literature/Schematics (1) Rider's Perpetual, Volume 22 = covering 1951 (pages 23-26)
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 135, Folder 15, 6-51)

Model page created by David Erali. See "Data change" for further contributors.
