H725Z1 Ch= 7G01Z1 walnut

H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 492199) Radio
H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 2455725) Radio H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 2455727) Radio
H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 2455726) Radio H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 2455728) Radio
H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 670133) Radio H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 670134) Radio
H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 670135) Radio H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 1417423) Radio
Use red slider bar for more.
H725Z1 Ch= 7G01Z1; Zenith Radio Corp.; (ID = 2455725) Radio
Zenith Radio Corp.;: H725Z1 Ch= 7G01Z1 [Radio] ID = 2455725 1217x1024
Select picture or schematic to display from thumbnails on the right and click for download.

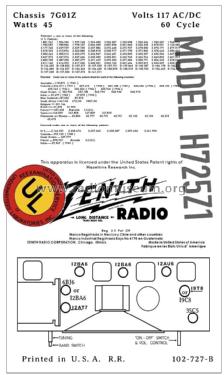

For model H725Z1 Ch= 7G01Z1 walnut, Zenith Radio Corp.; Chicago, IL:
Picture from Hans Amberger.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BJ6 12AT7 6BJ6 12BA6 12AU6 19T8 or 19C8 35C5
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
Power out
from Radiomuseum.org Model: H725Z1 Ch= 7G01Z1 [walnut] - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15 x 9 x 8 inch / 381 x 229 x 203 mm
Notes

This model has a loop antenna and also was available with a green or gray cabinet.

Note:  The Riders schematic reference is for model H725.  Thus, the schematic for this model may be slightly different.

Net weight (2.2 lb = 1 kg) 11 lb 11 oz (11.687 lb) / 5.306 kg
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-58, Set 423, Servicer)
Literature/Schematics (2) Rider's Perpetual, Volume 22 = covering 1951 (pages 23 - 26)

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
