HF1286RD Ch= 11 A 21
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 73533
-
- alternative name: Chicago Radio Lab
Image with courtesy by Ebayseller ivgotthat

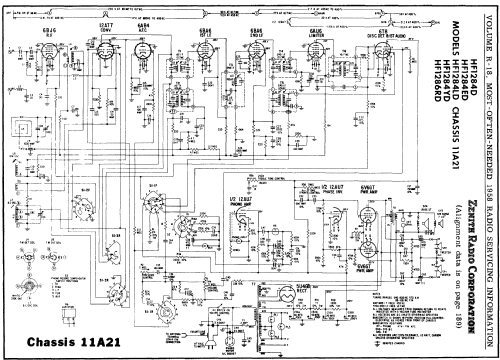

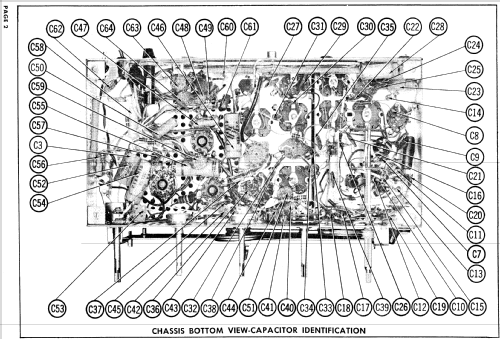

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: HF1286RD Ch= 11 A 21 - Zenith Radio Corp.; Chicago,
- Shape
- Console with any shape - in general
- Notes
- Sam´s 416-12
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 18, 1958
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 10-58, Set 416, Folder 12)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
