HF16R 3AO3; Zenith Radio Corp.; (ID = 2592496) R-Player

HF16R 3AO3; Zenith Radio Corp.; (ID = 2592497) R-Player

HF16R 3AO3; Zenith Radio Corp.; (ID = 2592498) R-Player

HF16R 3AO3; Zenith Radio Corp.; (ID = 2592499) R-Player

HF16R 3AO3; Zenith Radio Corp.; (ID = 2592500) R-Player

HF16R 3AO3; Zenith Radio Corp.; (ID = 2592501) R-Player
HF16R 3AO3; Zenith Radio Corp.; (ID = 1671077) R-Player HF16R 3AO3; Zenith Radio Corp.; (ID = 1671078) R-Player
HF16R 3AO3; Zenith Radio Corp.; (ID = 1671079) R-Player
Use red slider bar for more.
HF16R 3AO3; Zenith Radio Corp.; (ID = 1671077) R-Player
Zenith Radio Corp.;: HF16R 3AO3 [R-Player] ID = 1671077 933x1030
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF16R 3AO3 HF16E, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: 12AU7 6V6GT 6X5GT
Main principle Audio-Amplification
Wave bands - without
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: HF16R 3AO3 [HF16E] - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 19.25 x 25.25 x 18.25 inch / 489 x 641 x 464 mm
Notes

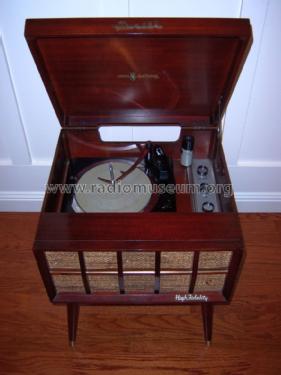

Zenith High Fidelity Cobramatic Record Changer model HF16R is an AC operated phono amplifier with 4 speed automatic record changer.

Literature/Schematics (1) -- Schematic (Photofact Folder Set 396 Folder 15)
Literature/Schematics (2) -- Schematic (Photofact Folder Set 392 Folder 14)

Model page created by Joshua Mecimore. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
