MJ1035 Ch=12J01Z
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298318
-
- alternative name: Chicago Radio Lab
VK: actionittodayctri #173119170431
VK: actionittodayctri #173119170431
- Number of Tubes
- 12
- Number of Transistors
- Semiconductors
- Selenium-Rectifier
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: MJ1035 Ch=12J01Z - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 445 x 260 x 292 mm / 17.5 x 10.2 x 11.5 inch
- Notes
-

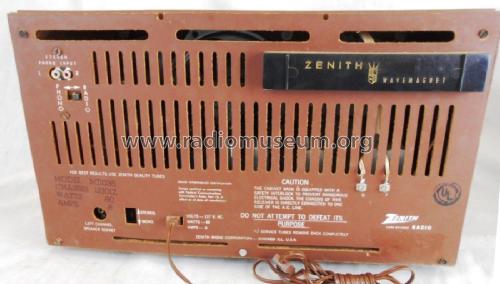

Stereo playback is possible. Has phono input selector on rear panel.
Similar model without phono input see MJ1035W Ch= 12J01.
- Author
- Model page created by Aglef Tröger. See "Data change" for further contributors.
