• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73951

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / C : 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.275 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

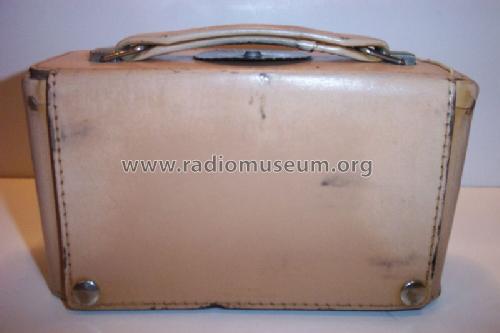

• Model: Royal 760 Navigator Ch=8AT42 - Zenith Radio Corp.; Chicago,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9 x 5 x 3.5 inch / 229 x 127 x 89 mm

• Notes

• Normal / Navigate switch to deactivate AGC for direction finding by signal nulling;

  Zenith Royal 760 Navigator was also manufactured with chassis 8AT42Z2.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Price in first year of sale
• 99.95 USD

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Mentioned in
• Zenith Transistor Radios

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
