Royal C25

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1968 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
106759

- alternative name: Chicago Radio Lab

Schematics

Royal C25 ; Zenith Radio Corp.; (ID = 1375091) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 258507) Radio — Zenith Radio Corp.; Royal C25 (2)

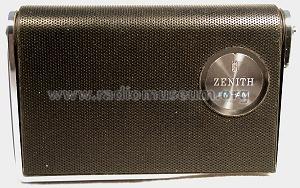

Royal C25 ; Zenith Radio Corp.; (ID = 258508) Radio — Zenith Radio Corp.; Royal C25 (2)

Royal C25 ; Zenith Radio Corp.; (ID = 1375092) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375093) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375094) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375098) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375101) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375102) Radio — Zenith Radio Corp.; Royal C25 (1)

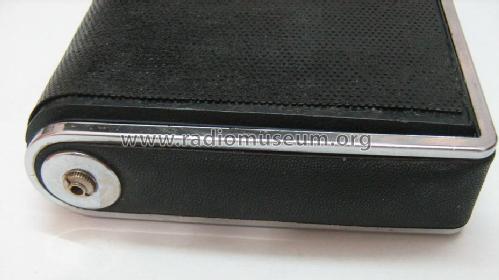

Royal C25 ; Zenith Radio Corp.; (ID = 1375105) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375108) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375109) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375111) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375112) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1375978) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1487107) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1487108) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 1611308) Radio — Zenith Radio Corp.; Royal C25 (2)
eBay item number:191055394056

Royal C25 ; Zenith Radio Corp.; (ID = 1611309) Radio — Zenith Radio Corp.; Royal C25 (2)
eBay item number:191055394056

Royal C25 ; Zenith Radio Corp.; (ID = 1611311) Radio — Zenith Radio Corp.; Royal C25 (2)
eBay item number:191055394056

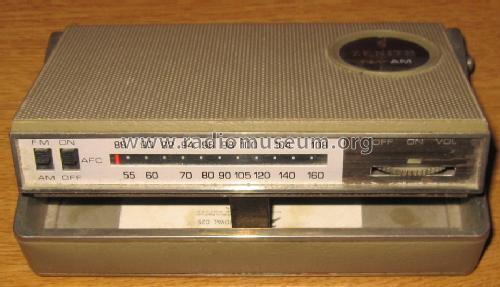

Royal C25 ; Zenith Radio Corp.; (ID = 1611313) Radio — Zenith Radio Corp.; Royal C25 (2)
eBay item number:191055394056

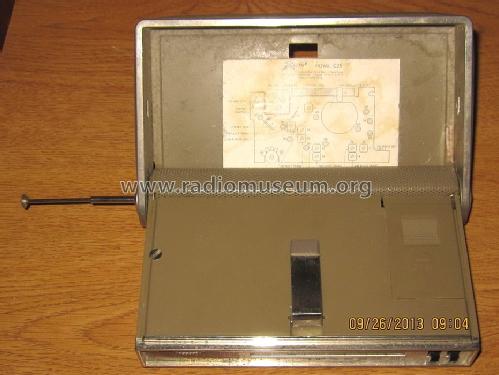

Royal C25 ; Zenith Radio Corp.; (ID = 1611315) Radio — Zenith Radio Corp.; Royal C25 (2)
eBay item number:191055394056

Royal C25 ; Zenith Radio Corp.; (ID = 1611316) Radio — Zenith Radio Corp.; Royal C25 (2)
eBay item number:191055394056

Royal C25 ; Zenith Radio Corp.; (ID = 1611319) Radio — Zenith Radio Corp.; Royal C25 (2)
eBay item number:191055394056

Royal C25 ; Zenith Radio Corp.; (ID = 2456400) Radio — Zenith Radio Corp.; Royal C25 (1)

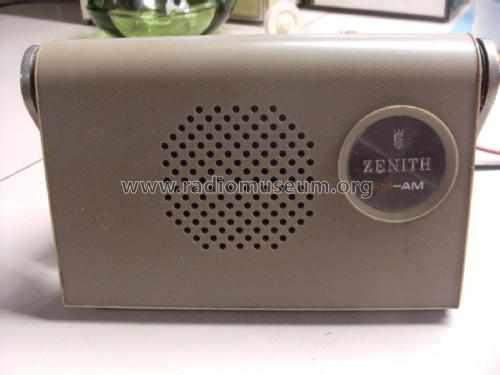

Royal C25 ; Zenith Radio Corp.; (ID = 2456852) Radio — Zenith Radio Corp.; Royal C25 (1)

Royal C25 ; Zenith Radio Corp.; (ID = 2456853) Radio — Zenith Radio Corp.; Royal C25 (1)

Technical Specifications

Number of Transistors
10

Semiconductors
CS9016 CS9016 CS9018 CS9018 unknown_tr CS9018 CS9015 2SC373 2SB496 2SD96

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Dry Batteries / 1 x 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

Power out
0.2 W (max.)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Royal C25 - Zenith Radio Corp.; Chicago,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
170 x 105 x 30 mm / 6.7 x 4.1 x 1.2 inch

Notes
Frequency ranges: FM 88 - 108 MHz, AM 540 - 1600 kHz. Telescopic antenna. Earphone included.

Available in two colors: tan and black; model numbers C25L and C25Y (color to model attribution unknown).

Made in Hong Kong

Net weight (2.2 lb = 1 kg)
0.3 kg / 0 lb 10.6 oz (0.661 lb)

Literature/Schematics (1)
Photofact TSM Transistor Radio Series SAMS (TSM-147)

Author
Model page created by Peter Hoddow. See "Data change" for further contributors.
