SF2530R Ch= 3B32 Ch= 9B26

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 147666
    • alternative name: Chicago Radio Lab

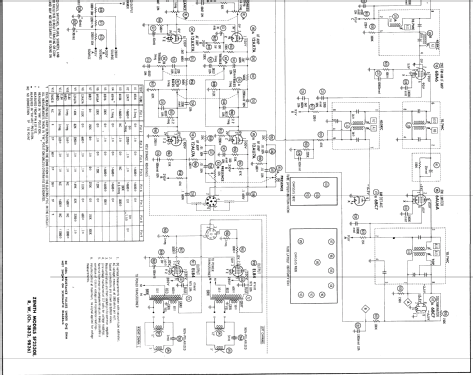

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • from Radiomuseum.org
  • Model: SF2530R Ch= 3B32 Ch= 9B26 - Zenith Radio Corp.; Chicago,
  • Notes
  • AC operated AM - FM tuner, stereo amplifier and 4 speed automatic record changer. Sams photofact set 482 folder 16 date 4-60 features the Zenith models SF2530E, SF2530R and SF2530W as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
