Trans-Oceanic R-7000 Ch= 2WKR70

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242820) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242821) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242825) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242835) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242836) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242837) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242838) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242839) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242840) Radio

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 242841) Radio
Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 2317061) Radio Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 2220138) Radio

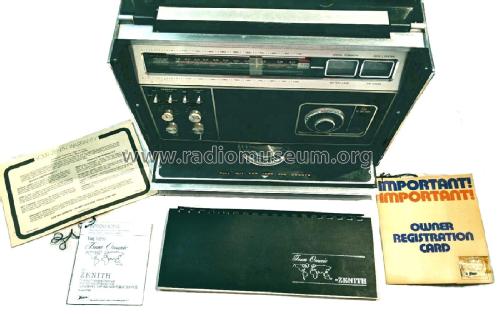

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 2220145) Radio Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 2317065) Radio

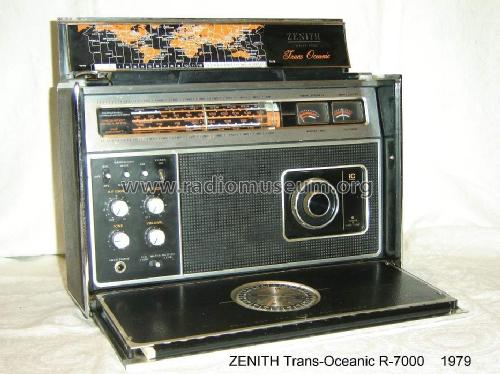

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 2317064) Radio Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 1371416) Radio

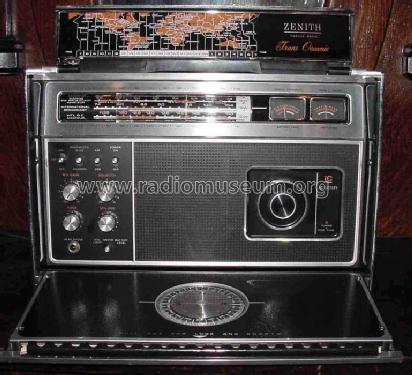

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 1717844) Radio Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 141535) Radio

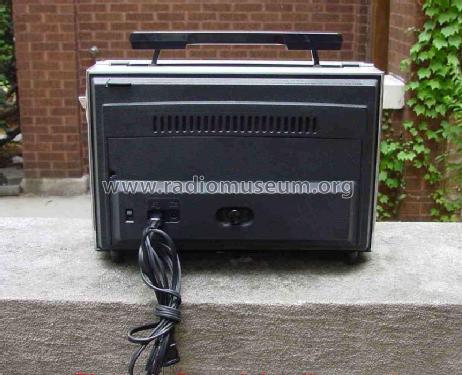

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 141536) Radio Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 141537) Radio
Use red slider bar for more.

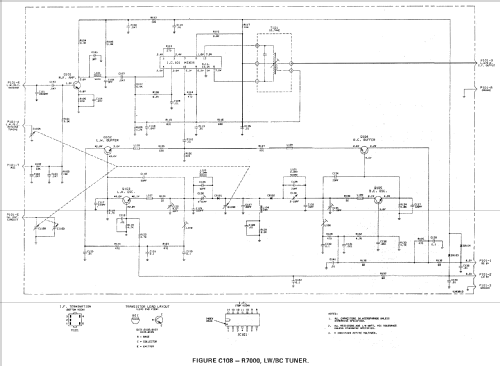

Trans-Oceanic R-7000 Ch= 2WKR70; Zenith Radio Corp.; (ID = 2317061) Radio
Zenith Radio Corp.;: Trans-Oceanic R-7000 Ch= 2WKR70 [Radio] ID = 2317061 1210x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trans-Oceanic R-7000 Ch= 2WKR70, Zenith Radio Corp.; Chicago, IL:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation Hungary (radio-muzeum.hu).

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1979–1981 Category: Broadcast Receiver - or past WW2 Tuner
Main principle Superhet with RF-stage; ZF/IF 10700/10700 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 120; D: 8 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Trans-Oceanic R-7000 Ch= 2WKR70 - Zenith Radio Corp.; Chicago,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 351 x 259 x 157 mm / 13.8 x 10.2 x 6.2 inch
Notes

Final and last Trans-Oceanic model, not to be confused with the Royal 7000, which is completely different!

Built-in BFO for SSB reception, squelch for PSB and AIR bands, variable RF gain.

Frequency Coverage:

LW: 170 – 450 KHz, MW: 540 – 1610 KHz, SW 1: 1.8 – 4 MHz, SW 2: 4.0 – 7.5 MHz, SW 3: 7.5 – 10.0 MHz, SW 4: 11.0 – 15.5 MHz, SW 5: 15.5 – 22 MHz, SW 6: 22 – 30 MHz, SW 7: 26.9 – 27.5 MHz ( CB ! ), FM: 88 – 108 MHz, VHF AIR: 107.8 – 136.5 MHz, VHF HI (PSB) 143.5 – 174.5 MHz

The R-7000 employed an innovative approach using the FM’s 10.7 MHz IF for all bands, effectively eliminating the problem of “images” in SW reception ( which fall at multiples of the IF frequency ) without the added complexity of going to a dual conversion design.

Only one IF string was needed rather than two.

Made in Taiwan by Zenith Taiwan Corp., a subsidiary of Zenith Radio Corp. Chicago, IL

See also the article here.
Siehe auch den Artikel hier.
Si veda anche l'articolo in questa pagina.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 379.95 USD
Collectors' prices
External source of data Bryant/Cones
Mentioned in -- Original-techn. papers.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4070 models, 3543 with images and 3225 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Zenith Radio Corp.;: Trans-Oceanic R-7000 Ch= 2WKR70
Threads: 2 | Posts: 4
Hits: 1868     Replies: 2
zenith: R-7000; Trans-Oceanic
Alfred Pugliese
11.Jan.09
  1

Hi all....The on/off switch shuts down dial lights, but not the radio. Anyone have any repair ideas? Also I am in need of dial lamps, the bulbs read GE18.Anyone know of source to get them?  Thanks  AL

Alfred Pugliese
14.Jan.09
  2

I repaired radio by removing chassis, and cleaning the switch, and all contacts using 'Gold' spray cleaner. I used Sylvania #74 bulbs for dial lights ( 14 volt...perfect match)   Thanks   AL

Wyatt CIRCO
17.Jan.09
  3

 I buy my dial lamps at antique electronic supply.  Use contact cleaner on switch and check circuit with a schematic for circuit modification.


Hits: 2608     Replies: 0
zenith: R-7000; Trans-Oceanic
Thomas Bavis
11.Aug.06
  1 Schematic at Nostalgia Air: http://www.transoceanic.nostalgiaair.org/r7000.htm
