All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41

All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 2062545) Radio All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 2062552) Radio
All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 2062553) Radio All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 2059664) Radio
All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 2059665) Radio All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 1960954) Radio
All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 1960955) Radio All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 1784985) Radio
All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 1784988) Radio All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 1960956) Radio
Use red slider bar for more.
All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41; Zenith Radio Corp.; (ID = 2062545) Radio

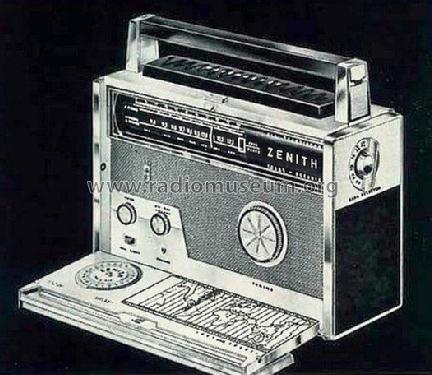

Zenith Radio Corp.;: All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41 [Radio] ID = 2062545 448x451
Select picture or schematic to display from thumbnails on the right and click for download.

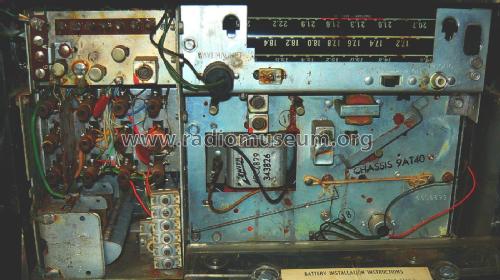

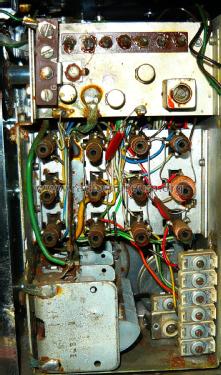

For model All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41, Zenith Radio Corp.; Chicago, IL:
Copy from Ebay seller natasced-beach with copyright.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1957/1958 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2N370 2N371 2N372 2N139 2N139 2N109 2N109 2N270 2N270
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / D: 8 x 1.5 & 1 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: All Transistor Trans-Oceanic Royal 1000 Ch= 9AT40 & 9AT41 - Zenith Radio Corp.; Chicago,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 267 x 122 mm / 12.6 x 10.5 x 4.8 inch
Notes

Zenith transistor numbers in the same order:
121-44 121-48 121-49 121-75 121-76 121-46 121-46 121-47 121-47.

See also the article here.
Si veda anche l'articolo in questa pagina.

See different chassis variants of the Zenith Transistorized Shortwave Portable Radio series Royal 1000 like the 9AT40, the 9CT..., the 9HT ... and the Trans-Oceanic Royal 1000D and the Trans-Oceanic Royal 1000-1 Ch= 9HT40Z8 which was the last model of the series 1000. There is an ad in "The National Geographic Magazine" 1957, December and we beleive the first Trans-Oceanic 1000 was introduced in November 1957.

Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 250.00 $

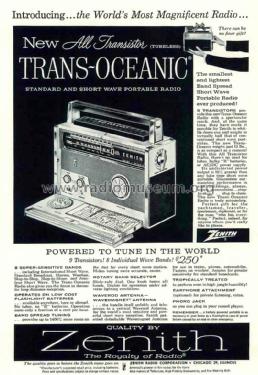

Mentioned in -- Original prospect or advert (December 1957: ad in "National Geographic", vol-CXII-No6 with picture)
Literature/Schematics (1) The Zenith Trans-Oceanic (Bryant & Cones (1995), pages 100 and 144)
