• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1955 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 82208

• • alternative name: Chicago Radio Lab

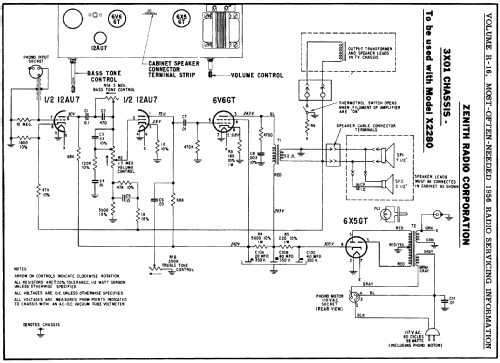

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AU7 6V6GT 6X5GT

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: X2280 Ch=3X01 - Zenith Radio Corp.; Chicago,

• Notes
• Chassis to be used with Model X2280

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
