Z402Y Ch= 4Z40

Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 135112) Radio

Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 506234) Radio

Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 506235) Radio

Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 506236) Radio

Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 506237) Radio
Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 265467) Radio Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 707470) Radio
Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 1515029) Radio
Use red slider bar for more.
Z402Y Ch= 4Z40; Zenith Radio Corp.; (ID = 265467) Radio

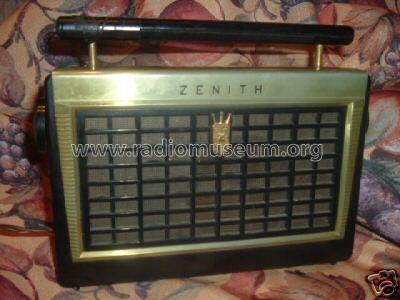

Zenith Radio Corp.;: Z402Y Ch= 4Z40 [Radio] ID = 265467 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Z402Y Ch= 4Z40, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC-DC 117 / 9 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Z402Y Ch= 4Z40 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 11.125 x 8.75 x 3 inch / 283 x 222 x 76 mm
Notes

Lieferbar in drei Farben (Three colors available)

Net weight (2.2 lb = 1 kg) 5.75 lb (5 lb 12 oz) / 2.611 kg
Price in first year of sale 34.95 USD
Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957
Literature/Schematics (1) Sam's, set 343, folder 17

Model page created by Egon Penker. See "Data change" for further contributors.
