For model Z402R Ch= 4Z40, Zenith Radio Corp.; Chicago, IL:
ebay: helmut47 # 6552764777

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 3V4 1U5 1U4 1R5
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 117 / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Z402R Ch= 4Z40 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 11.125 x 8.75 x 3 inch / 283 x 222 x 76 mm
Notes

Lieferbar in drei Farben (Three colors available)

Net weight (2.2 lb = 1 kg) 5.75 lb (5 lb 12 oz) / 2.611 kg
Price in first year of sale 34.95 USD
Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957

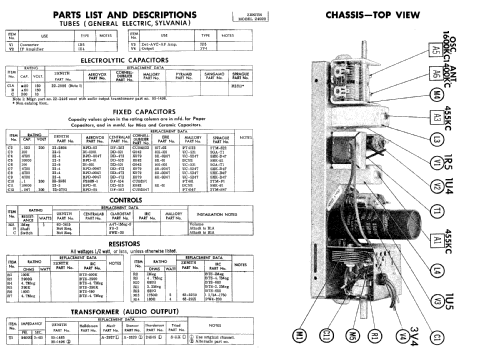

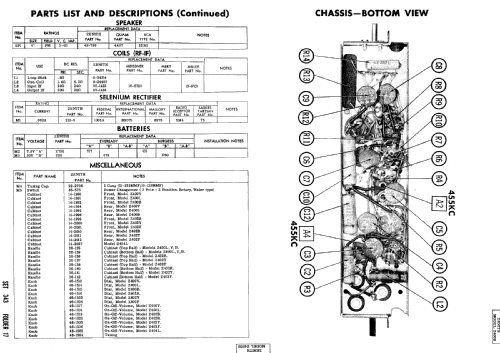

Literature/Schematics (1) Sam's, set 343, folder 17

Model page created by Klaus Ortwein. See "Data change" for further contributors.
