• Country
• Italy

• Manufacturer / Brand
• Zenitron; Torino

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91449

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

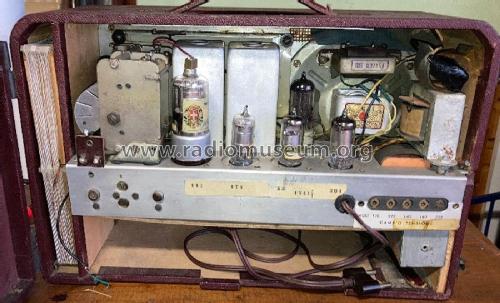

• Valves / Tubes
• 1LC5 or 1A7 or DK21 1T4 1S5 3Q4 or 3S4 UY41 or EZ2A

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 110; 125; 140; 160; 220 / 4 x 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

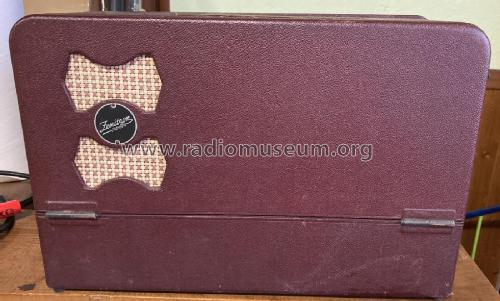

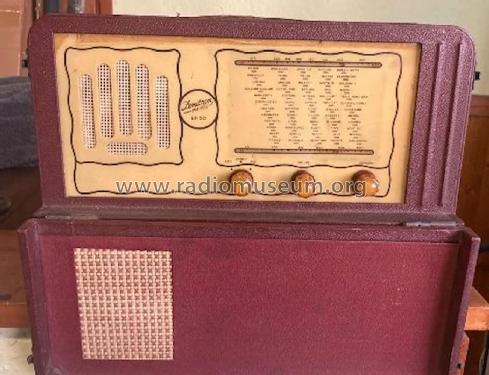

• Model: RP50 - Zenitron; Torino

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Antenna interna e presa per antenna esterna.

  Nel funzionamento in CA inoltre, le valvole sono alimentate in CC tramite un "raddrizzatore ad ossido" che alimenta anche un batteria "tampone".

  Lo schema e quindi l'elenco valvole indicano diverse incongruenze. 1AL6: Sembrerebbe inesistente. 1LC5 (Loctal) oppure 1A7 - DK21 (Octal). Nessuna delle 3 è compatibile. 3Q4 oppure 3S4 (non perfettamente compatibili). UY42 oppure EZ2A. Assolutamente non compatibili. Non si sa quindi quale delle combinazioni sia stata effettivamente utilizzata.

  The schematic indicates several inconsistencies:

  • 1AL6: seems non-existent
  • 1LC5 (Loctal) or 1A7 or DK21 (Octal): none of the 3 are compatible
  • 3Q4 or 3S4: not perfectly compatible
  • UY42 or EZ2A : not compatible

  It is unknown which of the combinations was really used.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 397)

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra (pag. Z1)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
