Amplificatore Stereo AP30S
Zeta Elettronica; Bergamo - Milano
- Country
- Italy
- Manufacturer / Brand
- Zeta Elettronica; Bergamo - Milano
- Year
- 1974 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 337524
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / CA: 36 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 120 W (max.)
- Material
- Printed Circuit Board
- from Radiomuseum.org
- Model: Amplificatore Stereo AP30S - Zeta Elettronica; Bergamo -
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 330 x 30 x 120 mm / 13 x 1.2 x 4.7 inch
- Notes
-
Amplificatore stereo con potenza per canale di 30 Weff. con 60 W di picco su 8 Ω.
Sensibilità 250 mV. Risposta in frequenza a ± 1,5 dB da 15 a 55.000 Hz con distorsione a 28 W < di 0,1%.
Impiega 30 semiconduttori al silicio.Veniva fornito montato tarato e collaudato.
- Price in first year of sale
- 22,500.00 ITL
- Mentioned in

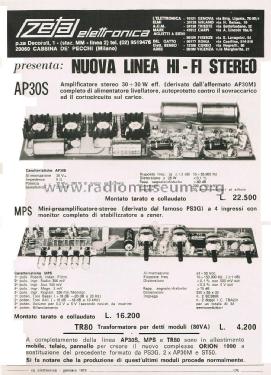

- -- Original prospect or advert (CQ Elettronica, edizioni CD numero 1, gennaio 1974.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
