• Country
• Italy

• Manufacturer / Brand
• Zetagi S.p.A.; Concorezzo, Milano

• Year
• 1990 ??

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 220453

• • Brand: ZG

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• MRF455 BC547

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

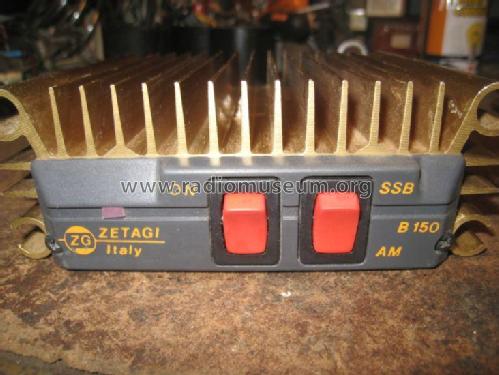

• Model: B150 - Zetagi S.p.A.; Concorezzo,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 100 x 40 x 100 mm / 3.9 x 1.6 x 3.9 inch

• Notes
• CB-Leistungsverstärker B150, 26-30MHz, Eingang max. 5 Watt- Ausgang bis zu 100 Watt, Umschalter für AM/SSB.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
