• Country
• Italy

• Manufacturer / Brand
• Zetagi S.p.A.; Concorezzo, Milano

• Year
• 1978 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 268574

• • Brand: ZG

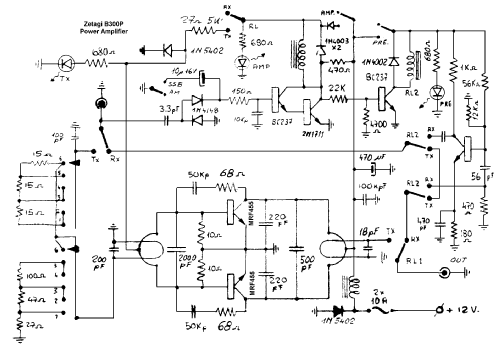

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC237 BC237 2N2222 MRF455 MRF455 1N4002 1N5402 1N5402 1N4148 1N4148 1N4003

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

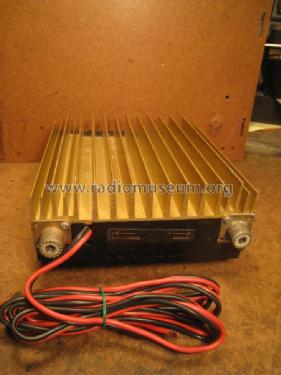

• Model: Linear Amplifier B300P - Zetagi S.p.A.; Concorezzo,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 180 x 160 x 70 mm / 7.1 x 6.3 x 2.8 inch

• Notes

• Zetagi B 300P
  Frequenza: 20 - 30 MHz
  Alimentazione: 11 - 14 VCC; 15 - 20 A.
  Potenza d'ingresso: 1 - 10 W AM; 1 - 20 W SSB.
  Potenza d'uscita: 70 - 200 W AM; 140 - 400 W SSB.
  Potenza d'uscita regolabile su sei livelli.
  Protezione contro l'inversione di polarità.



• Net weight (2.2 lb = 1 kg)
• 1.550 kg / 3 lb 6.6 oz (3.414 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
