• Country
• Italy

• Manufacturer / Brand
• Zetagi S.p.A.; Concorezzo, Milano

• Year
• 1990 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 251326

• • Brand: ZG

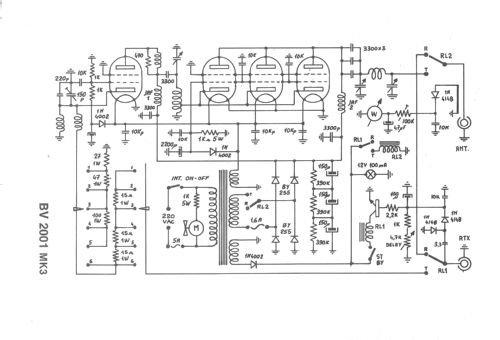

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EL509 EL509 EL509 EL509

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Linear Amplifier CB BV2001 MK3 - Zetagi S.p.A.; Concorezzo,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 280 x 440 mm / 16.5 x 11 x 17.3 inch

• Notes

• Lineare Amplifier CB BV2001 MK3.
  Potenza uscita - da 600W a 100W AM commutabile in 6 scatt.
  Potenza uscita max. SSB - 1200W PEP.
  Potenza ingresso - 0,5-10W AM 1.20W SSB.
  Frequenza - 26-30 MHz.
  Impedenza di  uscita -  40-75 Ohm

• Author
• Model page created by Giuseppe Tedesco. See "Data change" for further contributors.
