SWR Power Meter ZG 500

SWR Power Meter ZG 500; Zetagi S.p.A.; (ID = 1939435) Antenna SWR Power Meter ZG 500; Zetagi S.p.A.; (ID = 2145382) Antenna
SWR Power Meter ZG 500; Zetagi S.p.A.; (ID = 2220238) Antenna SWR Power Meter ZG 500; Zetagi S.p.A.; (ID = 2220239) Antenna
SWR Power Meter ZG 500; Zetagi S.p.A.; (ID = 2220240) Antenna SWR Power Meter ZG 500; Zetagi S.p.A.; (ID = 2220241) Antenna
SWR Power Meter ZG 500; Zetagi S.p.A.; (ID = 2220242) Antenna
Use red slider bar for more.
SWR Power Meter ZG 500; Zetagi S.p.A.; (ID = 1939435) Antenna
Zetagi S.p.A.;: SWR Power Meter ZG 500 [Antenna] ID = 1939435 1010x750

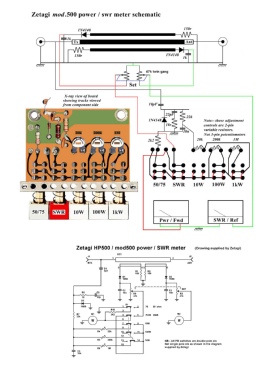

Select picture or schematic to display from thumbnails on the right and click for download.
For model SWR Power Meter ZG 500, Zetagi S.p.A.; Concorezzo, Milano:

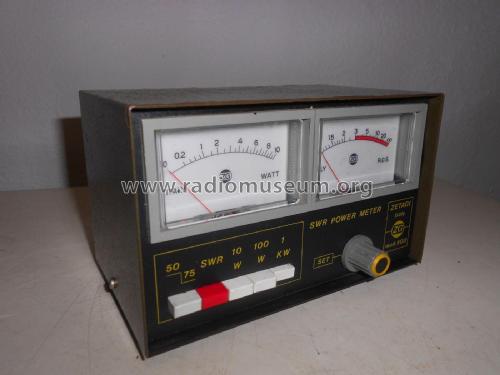

Frontansicht des Gerätes, auf der Rückseite sind lediglich die beiden Buchsen für Antenne und Sender.

Country:  Italy
Manufacturer / Brand:  Zetagi S.p.A.; Concorezzo, Milano
Brand

ZG
Year: 1985–1990 ?? Category: Antenna (Aerial) or Coupler
Wave bands Wave Bands given in the notes.
Details
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: SWR Power Meter ZG 500 - Zetagi S.p.A.; Concorezzo,
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 165 x 110 x 110 mm / 6.5 x 4.3 x 4.3 inch
Notes

Stehwellen- und Leistungsmeßgerät
Frequenzbereich: 3 - 200 MHz
Impedanz schaltbar: 50/75 Ohm
Belastbarkeit: 1000 Watt
Meßbereiche: 10, 100 und 1000 Watt, SWR
Anschlüsse: Pl259/SO239



Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 75.00 DM

Model page created by Alois Wolf. See "Data change" for further contributors.
