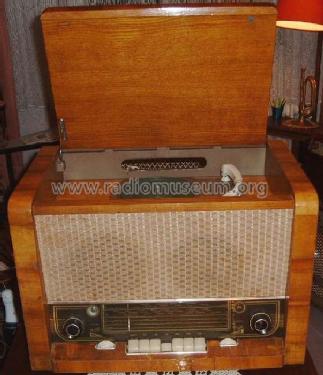

Melodia 59; Lenin Radio Works, (ID = 317581) Radio
Lenin Radio Works,: Melodia 59 [Radio] ID = 317581 604x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodia (Melodija) 59, Lenin Radio Works, Gorky
Country:  Soviet Union
Manufacturer / Brand:  Lenin Radio Works, Gorky
Year: 1959–1961 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6Н3П 6И1П 6К4П 6Х2П 6Е5С 6Н2П 6П14П
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 16 cm = 6.3 inch
Power out 2 W (unknown quality)
from Model: Melodia 59 - Lenin Radio Works, Gorky
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 390 x 330 mm / 21.7 x 15.4 x 13 inch
Notes Netzgleichrichtung mit Dioden; Vorläufer des Modells Melodia aus 1961; Plattenspieler für 33,45 und 78 rpm
Net weight (2.2 lb = 1 kg) 20.5 kg / 45 lb 2.5 oz (45.154 lb)
Price in first year of sale 80.00 RUR
Source of data - - Data from my own collection

Model page created by Gerhard Johanning. See "Data change" for further contributors.
