Contact-12 CE

Contact-12 CE ; Zodiac Funkgeräte (ID = 2051435) Citizen Contact-12 CE ; Zodiac Funkgeräte (ID = 2051436) Citizen
Contact-12 CE ; Zodiac Funkgeräte (ID = 2436733) Citizen Contact-12 CE ; Zodiac Funkgeräte (ID = 2436734) Citizen

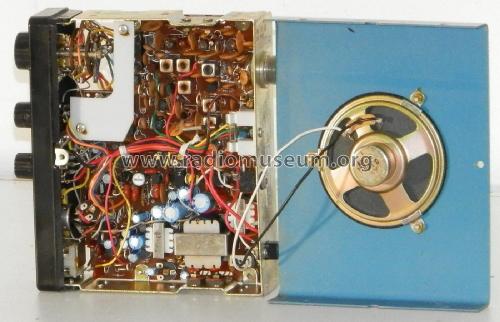

Contact-12 CE ; Zodiac Funkgeräte (ID = 2436735) Citizen Contact-12 CE ; Zodiac Funkgeräte (ID = 2436736) Citizen
Contact-12 CE ; Zodiac Funkgeräte (ID = 2436737) Citizen Contact-12 CE ; Zodiac Funkgeräte (ID = 2436738) Citizen
Use red slider bar for more.
Contact-12 CE ; Zodiac Funkgeräte (ID = 2051435) Citizen
Zodiac Funkgeräte: Contact-12 CE [Citizen] ID = 2051435 1109x734
Select picture or schematic to display from thumbnails on the right and click for download.
For model Contact-12 CE, Zodiac Funkgeräte GmbH, Düsseldorf

Country:  Germany
Manufacturer / Brand:  Zodiac Funkgeräte GmbH, Düsseldorf
Year: 1977/1978 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 15:
Main principle Transceiver; ZF/IF 10700/455 kHz; 4 AF stage(s)
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.3 W (undistorted)
from Radiomuseum.org Model: Contact-12 CE - Zodiac Funkgeräte GmbH,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 150 x 40 x 150 mm / 5.9 x 1.6 x 5.9 inch
Notes

Kleines CB-Mobilfunkgerät mit 0,5 Watt AM Sendeleistung.
Mit allgemeiner Genehmigung FTZ-Nr PR27-311 M/77

Dazu gehört ein dynamisches Mikrofon mit 5-pol-DIN-Stecker.

Das Gerät hat ein winziges S-Meter mit Leistungsanzeige.

Frequenzbereich: Kanal 4 bis 15,   27,005 bis 27,155 MHz

Net weight (2.2 lb = 1 kg) 0.750 kg / 1 lb 10.4 oz (1.652 lb)
Price in first year of sale 198.00 DM

Model page created by Alois Wolf. See "Data change" for further contributors.
