1247

Information - Help
ID = 26609

Country:
United States of America (USA)
Brand: Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
Tube type:  Signal Diode - one single system   Detector
Identical to 1247

Base SPECIAL TUBEBASE in general
Was used by Technology / Measurement

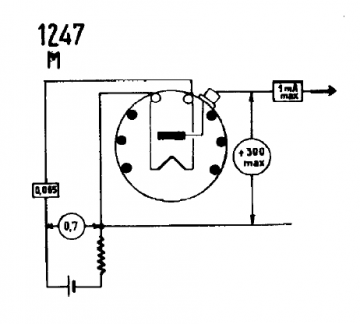

Filament Vf 0.7 Volts / If 0.065 Ampere / Direct
Description RF probe diode. 300V rms, 0.4ma DC plate current. T-3 subminiature envelope.
Text in other languages (may differ)
Literature Tube Substitution Handbook
- - Manufacturers Literature
Tube Lore (I)
  1247: Internet
Miguel Angel Trujillo-Rodriguez

1247: KoBi
Konrad Birkner † 12.08.2014



Usage in Models 1= 1951?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
