12AY3

Information - Help
ID = 5295



Tube type:  Half-Wave Vacuum Rectifier   Power-supply
Identical to 12AY3
Base Novar, B9E = bigger than Noval, USA 1959
Was used by Radio/TV-reception etc.
Filament Vf 12.6 Volts / If 0.6 Ampere / Indirect / Specified voltage AND current AC/DC
Tube prices 1 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Tube Tester Data Avo CT160
12AY3: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

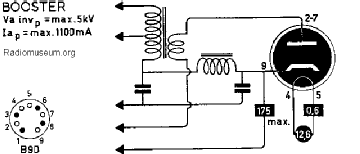

12ay3_sockel.png 12AY3: Essential characteristics
Peter Hoddow

Just Qvigstad 		scan_20250812.png
12AY3: Sammlung: oskarelm
Oskar Elm



Forum contributions about this tube
12AY3
Threads: 1 | Posts: 2
Hits: 4577     Replies: 1
12AY3 base
Christian Don
05.Aug.25 		  1
12AY3 base

The base of 12AY3 is NOVAR (B9E), not Noval

Administrators please change information on tube page
Bernhard Nagel
05.Aug.25 		  2
12AY3 base

Thank you, Christian. This has been corrected now. The base is identical to the tube 6AY3.

Bernhard

12AY3
End of forum contributions about this tube
