Radio-Katalog, Röhren, Halbleiter etc.
12BT6
|
Land:
USA
|
|
| Identisch mit |
12BT6
|
| Ähnliche |
Bauform anders (z.B. Art des Kolbens):
12AT6
; HBC90
Heizdaten anders:
6BT6
Heizdaten und Bauform anders:
6AT6
; EBC90
|
| Sockel |
Miniatur-7-Stift (B7G, USA 1940, Pico-7)
|
| Anwender |
Radio/TV-Empfang etc. |
| Heizung |
Uf 12.6 Volt / If 0.15 Ampere / Indirekt / Spezifizierte Spannung UND Strom ~ = |
| Beschreibung |
In one 1950 RMA release, release 820, Sylvania put out 7 market failures; a series of duo-diode triodes: 6BK6, 12BK6, 26BK6; 6BT6, 12BT6; 6BU6, 12BU6. These were largely identical in concept. All have the same 7BT basing. Besides the filaments, the difference is in the triode gains. The ‘BK6 triodes have a gain of 100; the ‘BT6 triodes have a gain of 70; and the ‘BU6 triodes have a gain of 16. I have had 12BT6 and 12BU6 tubes in my collection for a while, but have recently run across the 6BK6 and 12BK6. The ‘BK6 and ‘BT6 lost out to the 6AT6 and 12AT6, and the ‘BU6 lost out to the 6BF6 and 12BF6. (Source: Jim Cross)
|
| Sammlerpreise |
1 Sammlerpreise (nur sichtbar für
Mitglieder Radiomuseum.org)
|
| Literatur |
Essential Characteristics, GE 1973
|
| Tube Tester Data |
Avo CT160 |

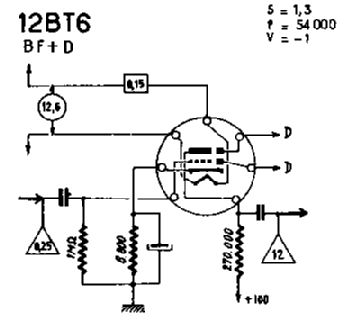

12BT6: Schematic from my documents.
Pier Antonio Aluffi
|
12BT6: RTT 1974 (Franzis) 13. Auflage
Martin Renz
|
Just Qvigstad
|
|
|
|
|
|
