12FM6

Information - Help
ID = 5394

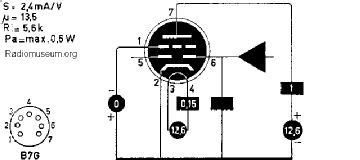

Tube type:  Double Diode-Triode
Identical to 12FM6

Base Miniatur-7-Pin-Base B7G, USA 1940
Filament Vf 12.6 Volts / If 0.15 Ampere / Indirect
Description Twin-diode, medium-mu triode designed to operate with 12.6V heater and anode supply voltage obtained from the automotive storage battery.
Tube prices 2 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
- - Manufacturers Literature
  12FM6: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

12FM6: R. Aufils
Raynal Aufils


12FM6: RTT Schwandt
Günther Stabe † 19.8.20


12FM6: RCA Manual RC-21
Heinz Höger


from Just Qvigstad

Usage in Models 4= 1959? ; 2= 1959 ; 1= 1962? ; 1= 1963

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):8
