2B56

Information - Help
ID = 44033



Tube type:  IC - Integrated Circuit
Identical to 2B56

Base Wires
Description Aufbau/Content: Module (__ ICs, __ Trans., __ Widerst., __ Dioden);
Form/Case: Block, 22 Pins;

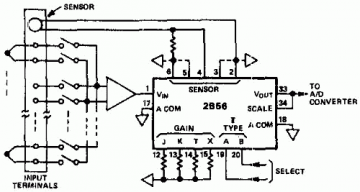

Type: High Accuracy, Thermocouple Cold Junction Compensator (Sensor: AD590 / 2N2222);
Data: Vb: +/- 15 V; tmax j: 70 °C ... (more: see manufacturer's datasheet );
Varianten: Suffix J/K/T (digitally programmed), E/R/S/B/none (user programmed) -
Dimensions (WHD)
incl. pins / tip
50 x 10 x 37 mm / 1.97 x 0.39 x 1.46 inch
Information source - - Manufacturers Literature   Analog Devices

2B56: Analog Devices
Günther Stabe † 19.8.20

2b56_s.gif 2B56: Analog Devices
Günther Stabe † 19.8.20

2B56: Analog Devices
Günther Stabe † 19.8.20
