2N4304

Information - Help
ID = 36824

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Transistor   Universal
Identical to 2N4304
Similar Tubes
Other shape (e.g. bulb type):
  PN4304
First Source (s)
Mar.1968 : -- Collector info (Sammler)

Base Wires
Filament Solid State
Description

Material/Aufbau/Pol.: Silizium N-Kanal Sperrschicht FET;
Form/Case/Outline: TO-106 Anschlussfolge SDG;
Daten/electr.data: I ds s: <15 mA; U gS: <10 V; I gs s: <1 nA; ß (beta): >1; N: 300 mW; Imax(Ig): 10 mA; Umax(Uce): 30 V; f g(FT): __ MHz; tmax j: 150 °C.
Vergleichstyp/similar: 2N5457.
Heathkit Part No.: 417-140.


Dimensions (WHD)
incl. pins / tip
5 x 5 x 4 mm / 0.20 x 0.20 x 0.16 inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   TTT Steidle 1981

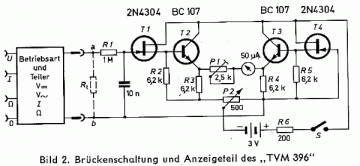

  2N4304: Funktechnik 9/68
Egon Strampe

2N4304: own collection
Thomas Günzel


2N4304: TTT Steidle 1981
Günther Stabe † 19.8.20



Usage in Models 1= 1968? ; 3= 1968

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):4
