2N45

Information - Help
ID = 44182

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Transistor   Universal
Identical to 2N45
Similar Tubes
Normally replaceable-slightly different:
  2N34 ; 2N44 ; AC122

Base Wires
Filament Solid State
Description PNP germanium fused junction transistor for universal purpose.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
12 x 8 x 8 mm / 0.47 x 0.31 x 0.31 inch
Weight 1 g / 0.04 oz
Literature -- Collector info (Sammler)   KTT 1969/70

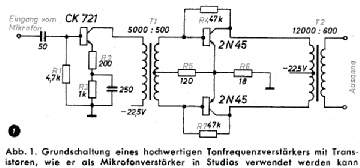

  2N45: Funktechnik 8/56
Egon Strampe

2N45: Andrew Wylie
Günther Stabe


2N45: TTT Steidle 1981
Günther Stabe


2N45: General Electric Transistor Manual, 1957
Günter Kudicke
